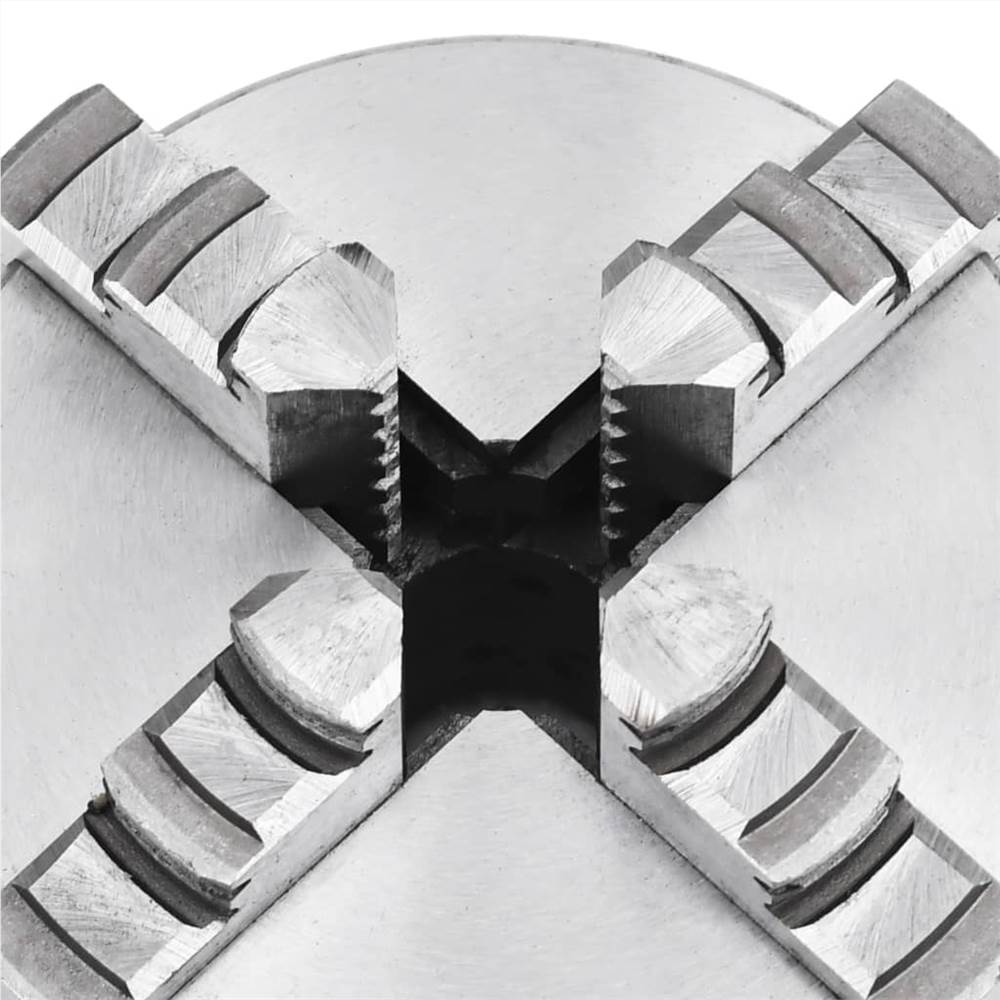

4 Jaw Self-Centering Lathe Chuck 100 Mm Steel

This self-centring 4 jaw lathe chuck can perform a wide range of tasks, expanding the possibilities of making your original designs. It also proves high clamping accuracy on a wide range of surfaces, such as a fixed solid or hollow circle material, a triangular material or a hexagonal material. It is made of high-quality steel with high hardness and wear-resistance, making it strong and durable. This chuck is with 4 jaw design, self-centring, compact size and easy to use.

• Colour: Silver and black
• Material: HT300 steel
• Outside diameter: 100 mm
• Number of jaw: 4
• Passage: 22 mm
• Cylindrical inner passage: 72 mm
• Clamping range (internal jaw): 2 – 30 mm
• Clamping range (external jaw): 30 – 80 mm
• Total height: 55 mm
• Maximum speed: 3500 R/min

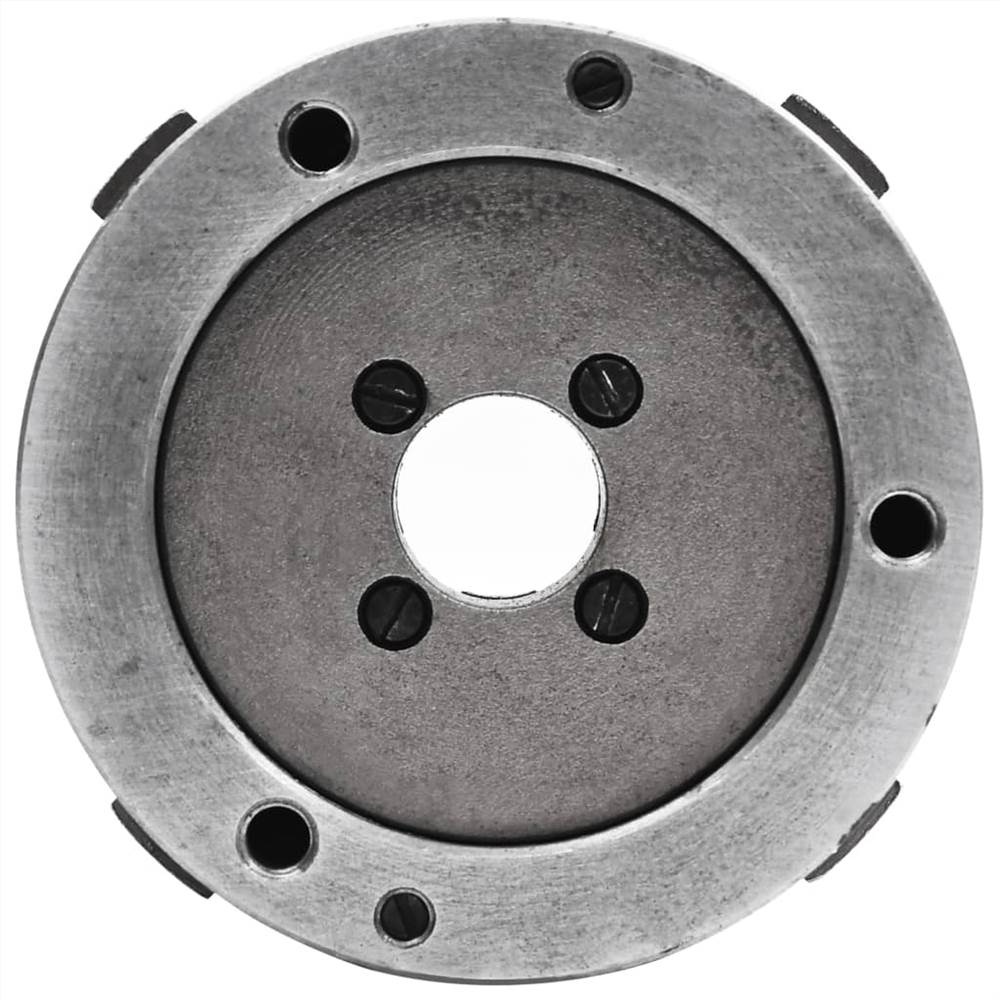

• 3 x M8 holes
• Run out: 0,08
• Net weight: 3,2 kg

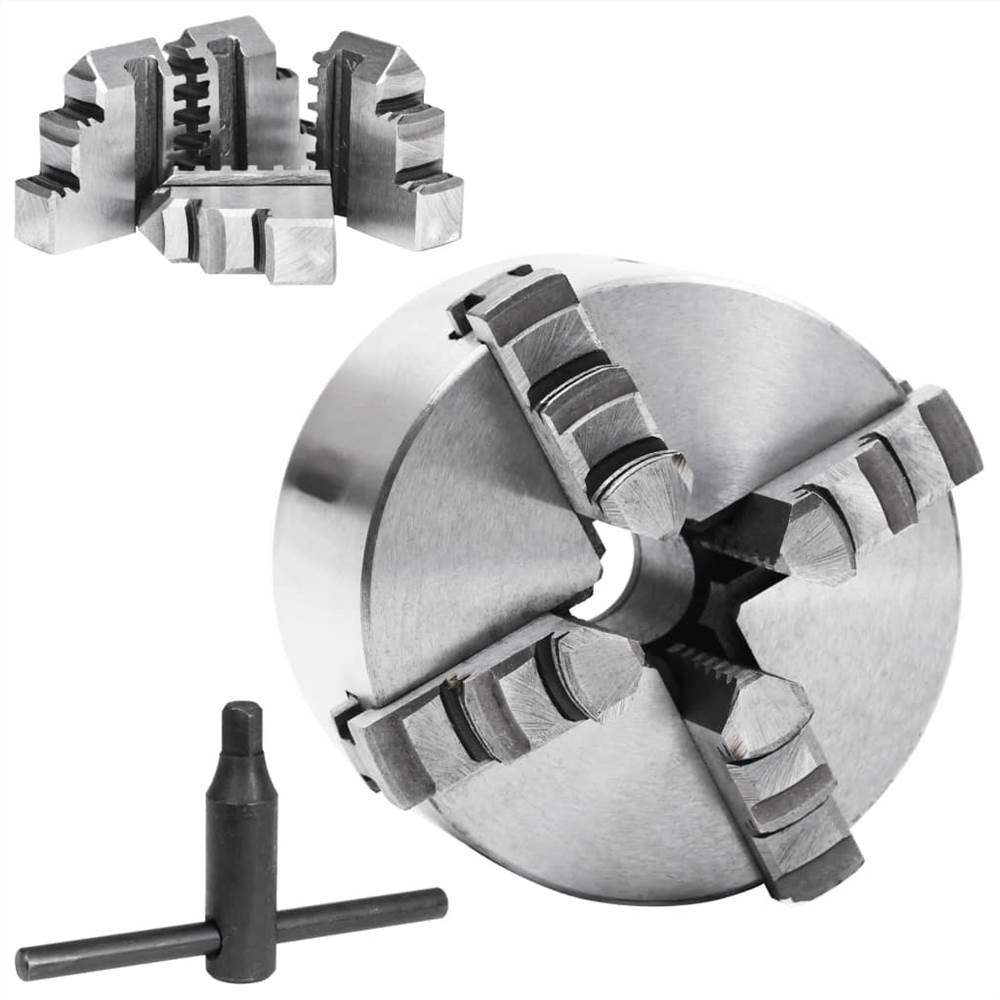

• Delivery contains:
• 1 x Lathe chuck

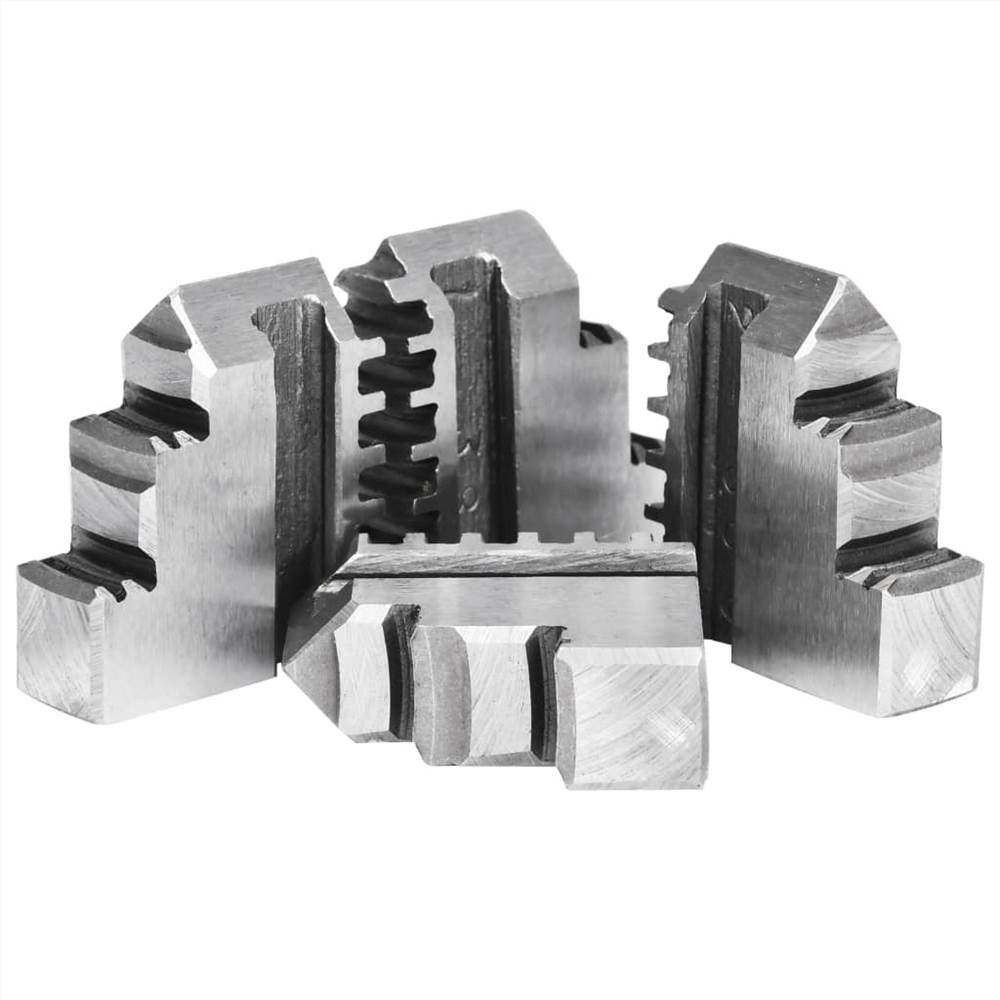

• 4 x Jaw
• 1 x Chuck key
