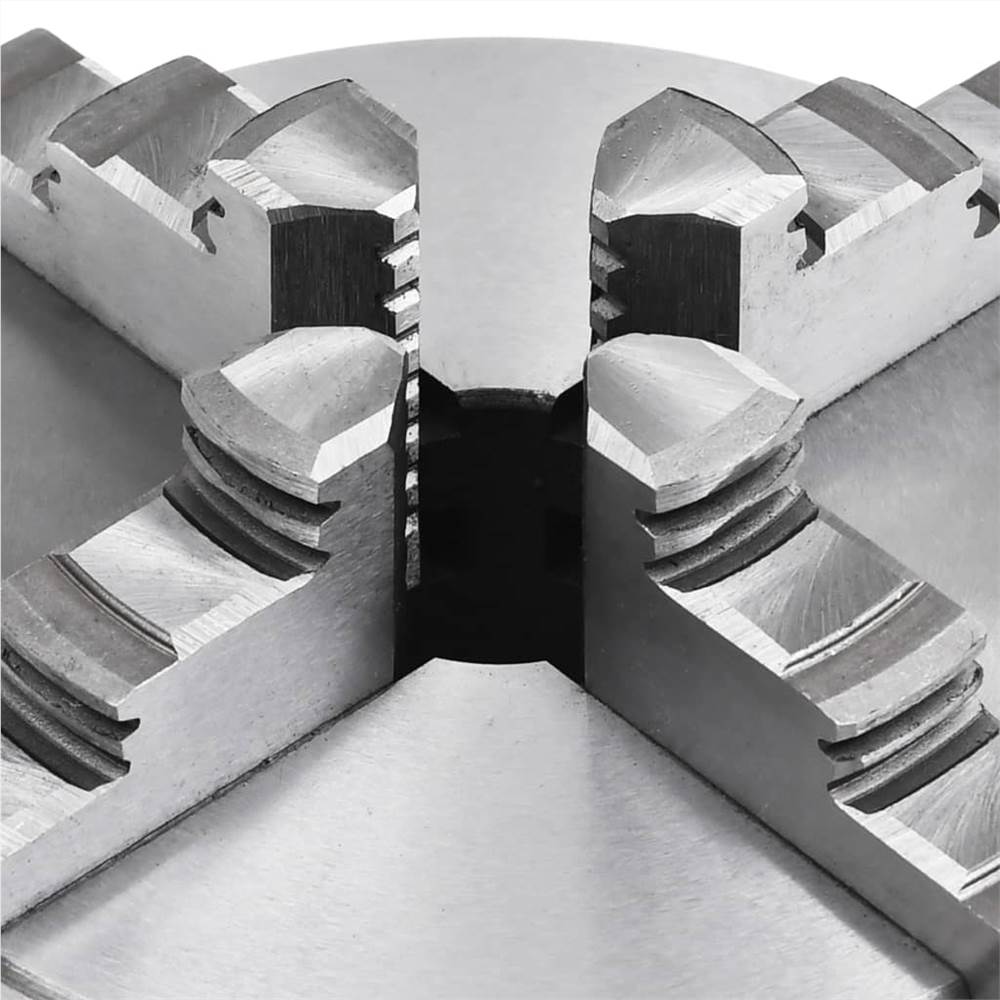

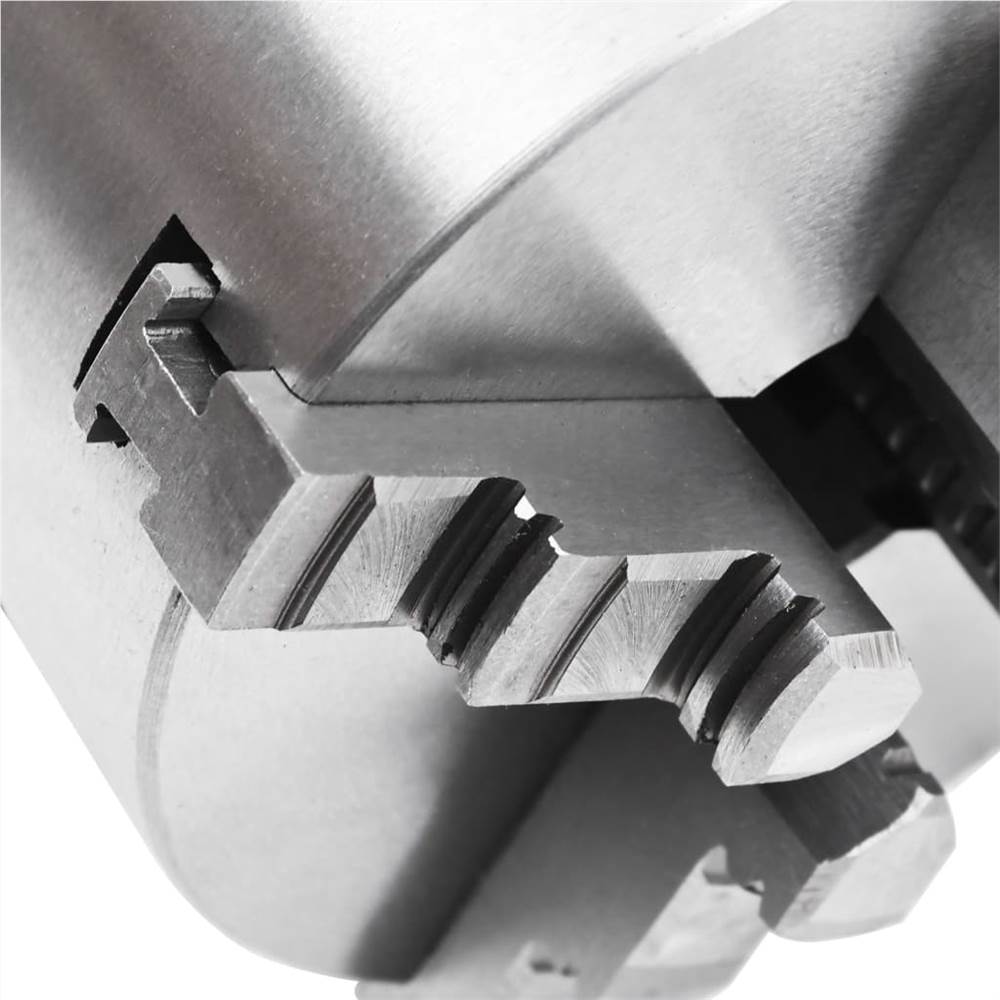

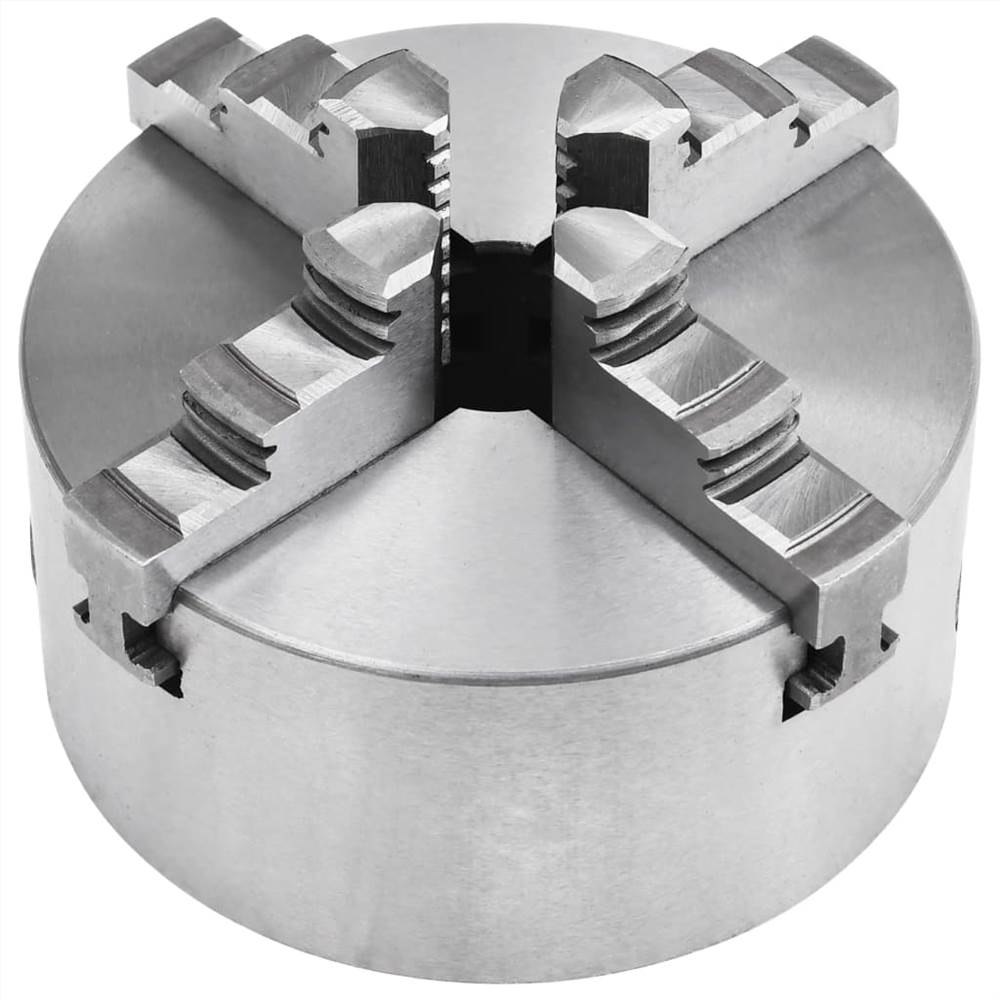

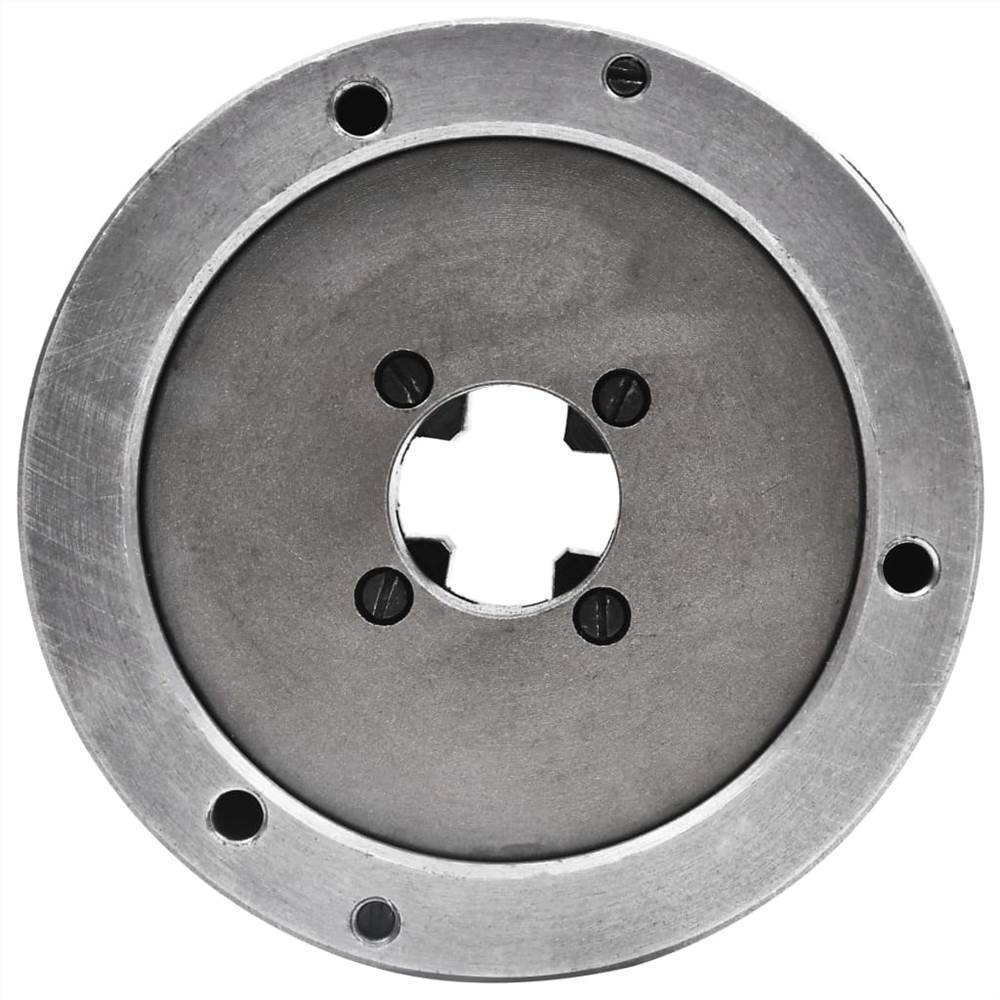

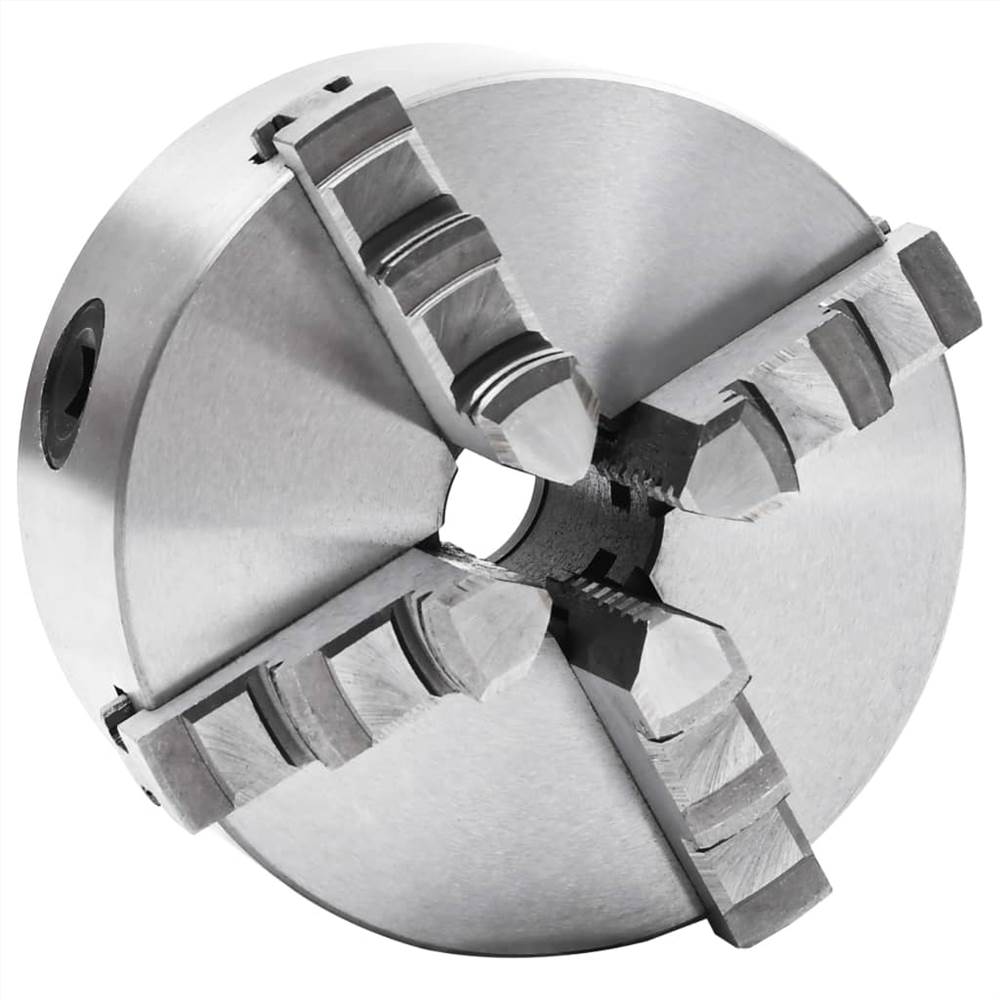

4 Jaw Self-Centering Lathe Chuck 125 Mm Steel

This self-centring 4 jaw lathe chuck can perform a wide range of tasks, expanding the possibilities of making your original designs. It also proves high clamping accuracy on a wide range of surfaces, such as a fixed solid or hollow circle material, a triangular material or a hexagonal material. It is made of high-quality steel with high hardness and wear-resistance, making it strong and durable. This chuck is with 4 jaw design, self-centring, compact size and easy to use.

• Colour: Silver and black
• Material: HT300 steel
• Outside diameter: 125 mm
• Number of jaw: 4
• Passage: 30 mm
• Cylindrical inner passage: 95 mm
• Clamping range (internal jaw): 2,5 – 40 mm
• Clamping range (external jaw): 38 – 110 mm
• Total height: 58 mm
• Maximum speed: 3000 R/min
• 3 x M8 holes
• Run out: 0,08
• Net weight: 5,3 kg

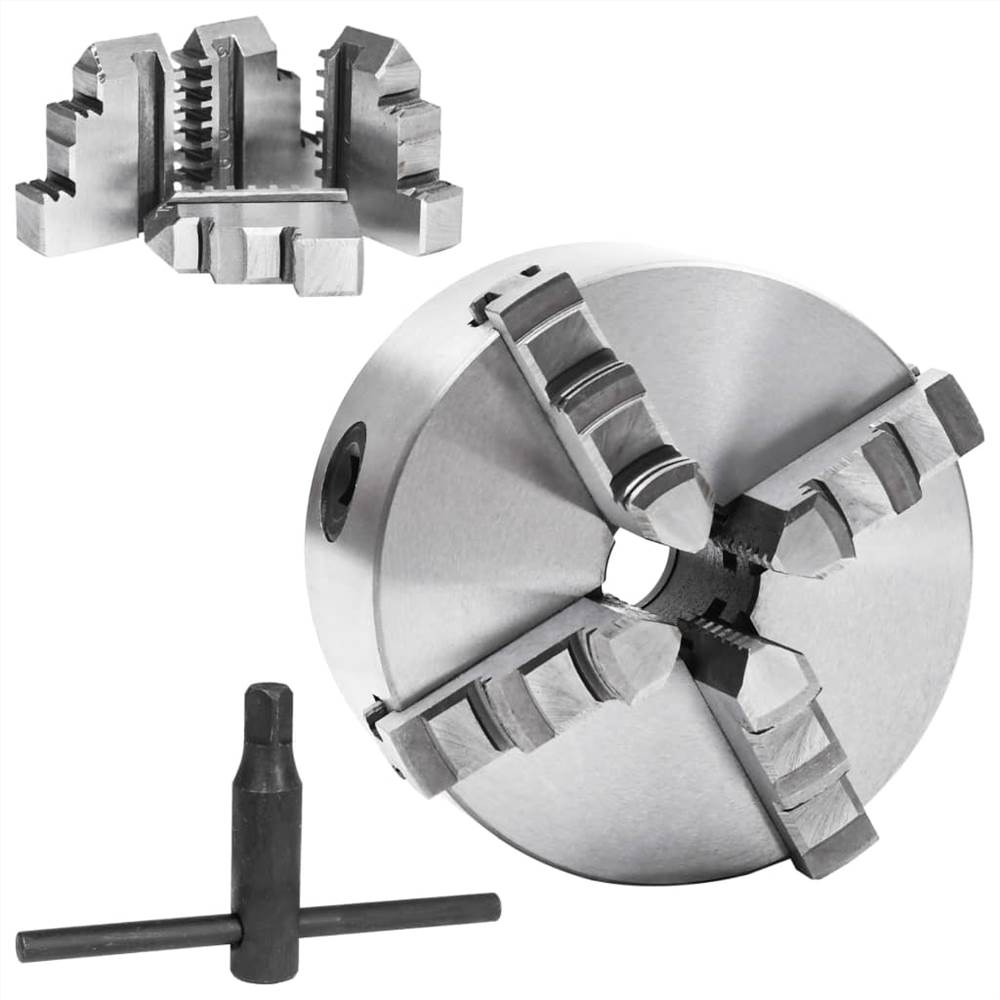

• Delivery contains:
• 1 x Lathe chuck

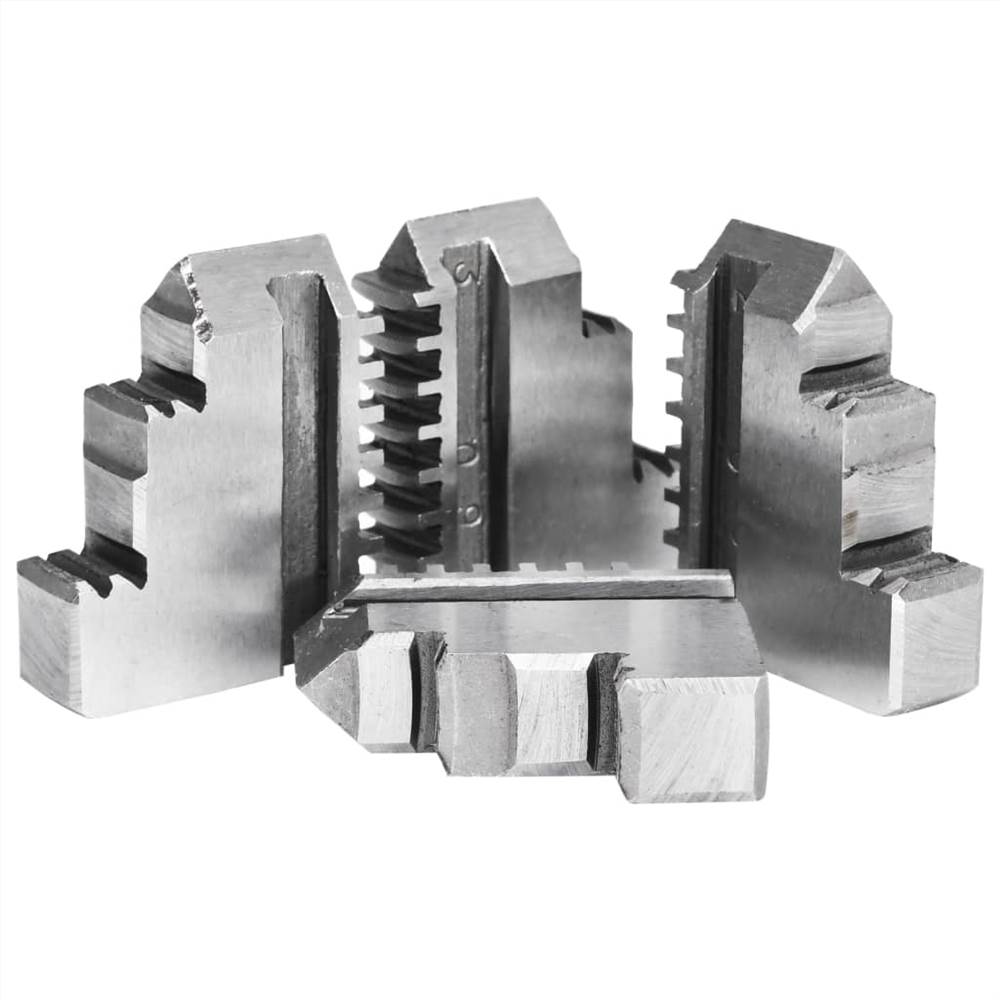

• 4 x Jaw
• 1 x Chuck key
